NAME	UNITS	RS4-630	RS4-800	RS4-1000	RS4-1250	RS4-1600
Nominal pressure	KN	6300	8000	10000	1250	16000
Nominal Pressure stroke	mm	13	13	13	13	13
Slide stroke	mm	500	700	700	700	700
No. of stroke per minute	spm	Oct-16	Oct-16	Oct-16	Oct-16	Oct-16
Max, die height	mm	1100	1100	1200	1200	1200
Die height adjustment	mm	500	500	600	600	600
Distance between slide rails	mm	Mar-11	Apr-11	Jul-11	Aug-12	Aug-12
Bloster dimension	mm	2000×4000	2000×4000	2200×4000	2200×4500	2200×4500
Slide dimension	mm	2000×4000	2000×4000	22200×4000	2200×4500	2200×4500
Air cushion	KN-mm	1000-200	1500-250	1500-250	2000-250	2000-250
Main motor power	KW	90	110	132	160	220
High above ground	mm	8920	9500	9600	10600	11000

Base column crossbeam and slide all use steel structure, Tighten together with tension bolts.
The transmission adopts three-stage transmission, one stage belt drive, two-stage gear transmission, High speed stage double helical gear.
The connecting rod is connected with the slide block by the guide pillar guide sleeve structure, Eight extra long guide rail.

The clutch brake adopts a low inertia pneumatic clutch brake, which is controlled by a double safety valve.
The hydraulic pressure overload protection device is adopted for the slide block
The height of the mould is adjusted by the digital display.
Hydraulic, pneumatic, electrical control components using high-quality brand-name products.
Electrical use PLC dual loop control
With oil pressure, oil level, fault detection, a variety of action chain
Finite element analysis of key components.
Optional before or after the moving side of the bloster, air cushion, special vibration isolator, quick
die changing device, photoelectric protection device, rigid material and so on The method of thin oil circulating lubrication and concentrated oil
clearance lubrication. With high and low level detection, high pressure detection, timing, fixed-point, quantitative lubrication.

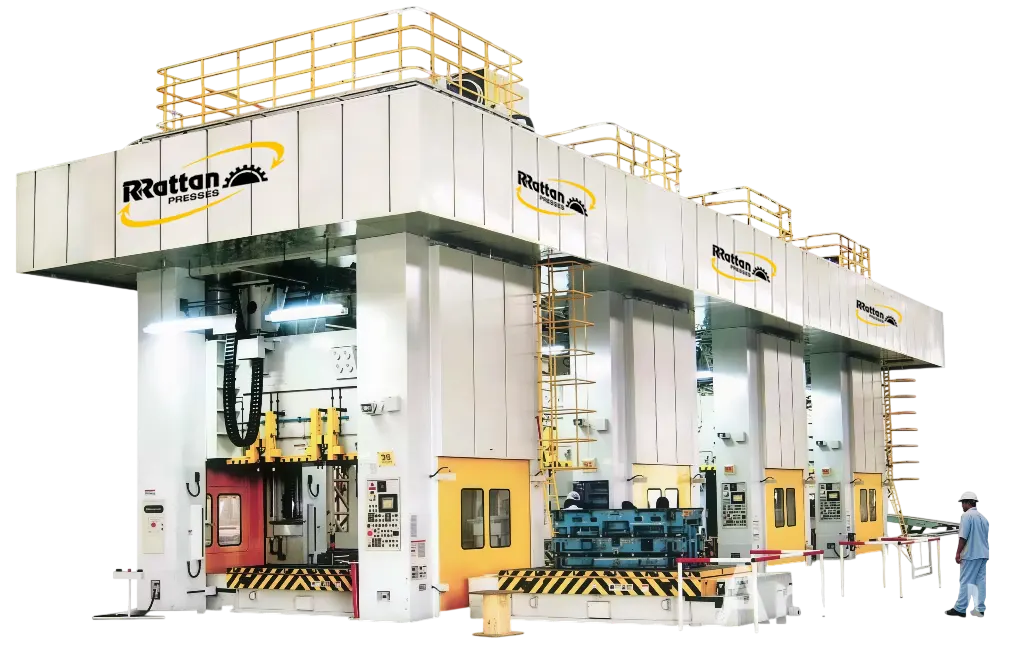

RS4 SERIES

Straight Side Four Point Press
