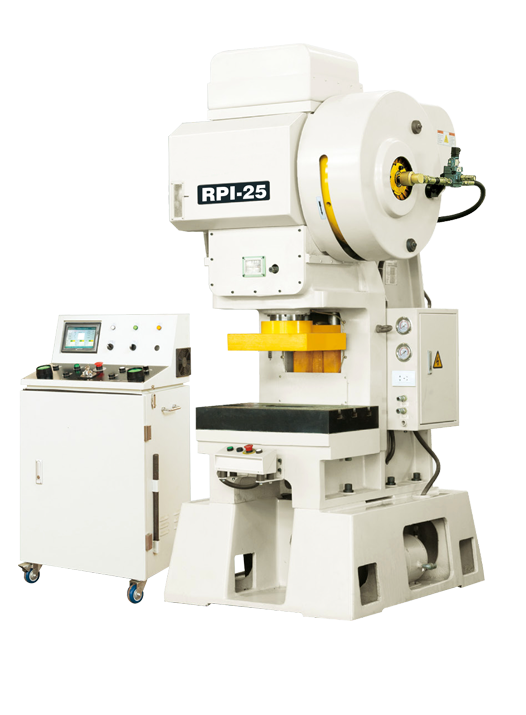

RPI-25 SERIES
High Speed Precision Press Machine
Our Products Range
Got any Questions?
Call us Today!
HIGH SPEED PRECISION PRESS MACHINE
Technical Specification For"HIGH SPEED PRECISION PRESS MACHINE"
|
NAME
|
UNITS
|
RPI-25
|
RPI-45
|
RPI-60
|
|
Capacity
|
Ton
|
25
|
45
|
60
|
|
Stroke
|
mm
|
30
|
30
|
30
|
|
Speed changing
|
S.P.M
|
200-800
|
200-700
|
200-700
|
|
MAX die height
|
mm
|
210
|
210
|
305
|
|
Slide area
|
mm
|
300×210
|
300×205
|
550×340
|
|
Bolster area
|
mm
|
600x300x80
|
600x300x80
|
840x470x105
|
|
Slide adjust device
|
mm
|
30
|
30
|
30
|
|
Bed opening
|
mm
|
200×100
|
240×120
|
320×160
|
|
Main motor
|
k.w.p
|
3.7
|
5.5
|
7.5
|
|
Lubrication
|
Forceful Auto Action
|
Forceful Auto Action
|
Forceful Auto Action
|
|
|
Speed control
|
Inverter
|
Inverter
|
Inverter
|
|
|
Clutch & brake
|
Air & Friction
|
Air & Friction
|
Air & Friction
|
|
|
Auto top stop
|
Standard
|
Standard
|
Standard
|
|
|
Vibration system
|
Optional
|
Optional
|
Optional
|

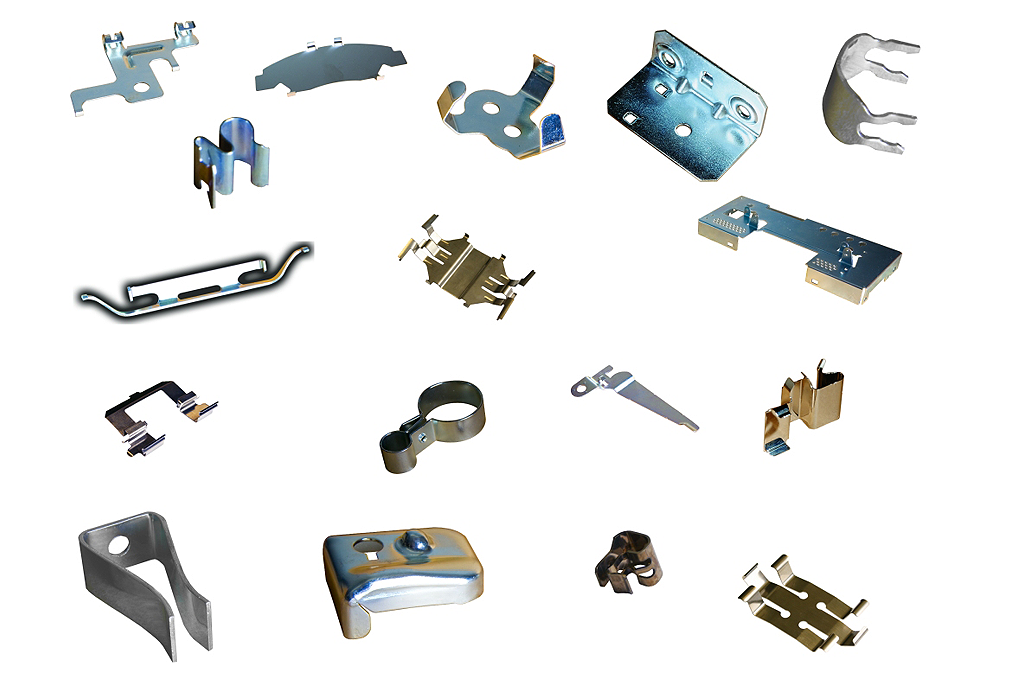

Application
