Stroke Adjustable Strong Steel Frame Press
Technical Specification For "Stroke Adjustable Strong Steel Frame Press"
| NAME | UNITS | RDL-60 | RDL-80 | RDL-110 | RDL-160 |
| Capacity | Ton | 60 | 80 | 110 | 160 |
| Rated tonnage point | mm | 4 | 4 | 6 | 6 |
| Speed changing | s.p.m. | 35-90 | 35-80 | 30-60 | 20-50 |
| Stable speed | s.p.m. | 65 | 65 | 50 | 35 |
| Stroke | mm | 20-100 | 25-120 | 25-160 | 30-180 |
| MAX die height | mm | 310 | 340 | 370 | 470 |
| Slide adjustment | mm | 75 | 80 | 80 | 100 |
| Slide area | mm | 700x400x70 | 770x420x70 | 910x470x80 | 90x550x90 |
| Bolster area | mm | 900x500x80 | 1000x550x90 | 1150x600x110 | 1250x800x140 |
| Shank hole | mm | 050 | 050 | 050 | 065 |
| Main motor | kwp | 5.5×4 | 7.5×4 | 11×4 | 15×4 |
| Slide adjust device | Manual Operation | Electric Driving | |||
| Air pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 |
| Presses precision | 1 Class | 1 Class | 1 Class | 1 Class | |
| Presses dimension | mm | 1595x1000x2800 | 1800x1100x2800 | 1900x1300x3200 | 2420x1390x3465 |
| Die cushion capacity | ton | 3.6 | 3.6 | 6,3 | 10 |
| Stroke | mm | 70 | 70 | 80 | 80 |
| Die cushion effect area | mm2 | 350*300 | 450*310 | 500*350 | 650*420 |
Name |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
RDL-60 |
320 |
160 |
150 |
700 |
220 |
220 |
50 |
160 |
400 |
II |
RDL-80 |
360 |
180 |
150 |
770 |
300 |
220 |
50 |
180 |
420 |
II |
RDL-110 |
400 |
200 |
160 |
910 |
300 |
220 |
50 |
220 |
470 |
II |
RDL-160 |
420 |
220 |
220 |
990 |
300 |
175 |
50 |
220 |
550 |
II |
Standard Accessories
- Inverter
- Hydraulic over-load protector
- Electrical automatic lubrication system
- Manual slide adjust device (60 tons and below)
- Slide adjust device (80 tons and above)
- Automatic die height indicator (60 tons and below)
- Die height indicator (60 tons and above)
- Balance device
- Rotary cam switch
- Misfeed detection consent
- power supply
- Crank angle indicator
- Electrical stroke counter
- Air source receptacle
- Against over-run safety device
- Air ejector
- Maintenance tool box
- Operation manual
Optional Accessories
- Wet clutch & brake
- Pneumatic die cushion device
- Foot switch
-
Quick die change device (die lifter,
clamp and die arm) - Slide knock-out device
- Anti-vibration press mount
- Photo-electconic safety device
- Uncoil
- Straightener
- Mechanism Hand
- Die room light
- Touch screen (preset, total counter)
- Man-machine central system
Characterstic
- Reasonable structural design, is benefit for automation production and reduce cost, improve efficiency.
- Advanced design principal, low noise, low consumption, low cost, save energy,
- With high rigidity design in machine frame, the machine body is welded of quality steel sheet and treated by tension elimination, improve stability and reliability of precision of the machine.
- Keep the transmission center and machine center in uniformity, guarantee the precision of pressing.
- In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical boards with balancer.
- Six-speed adjustable ram stroke, suitable for a variety of different moulds Die height use.

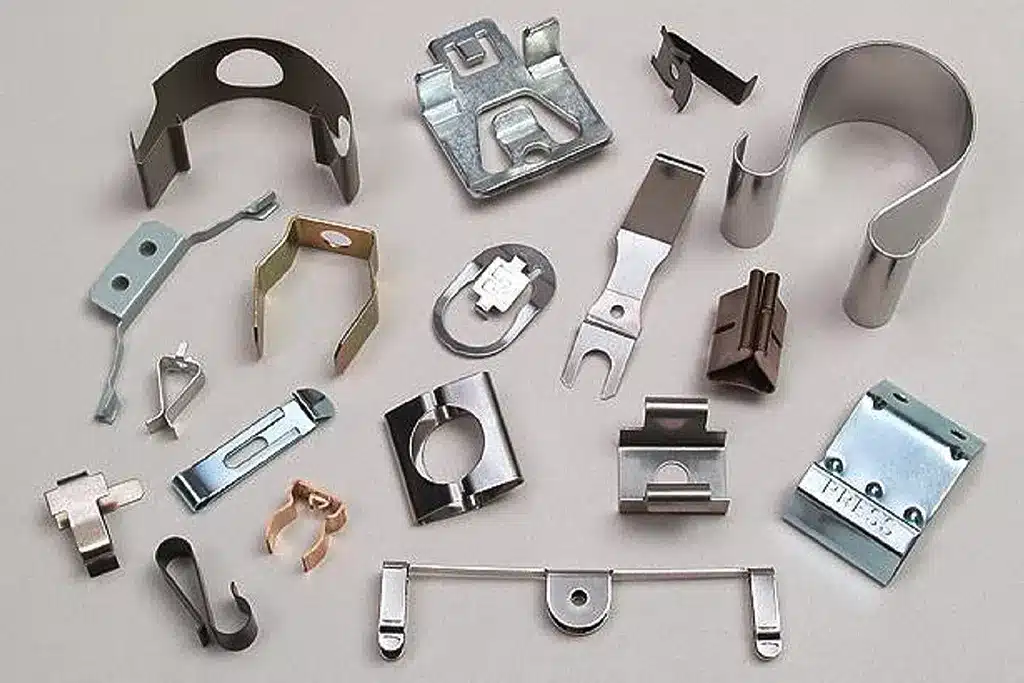

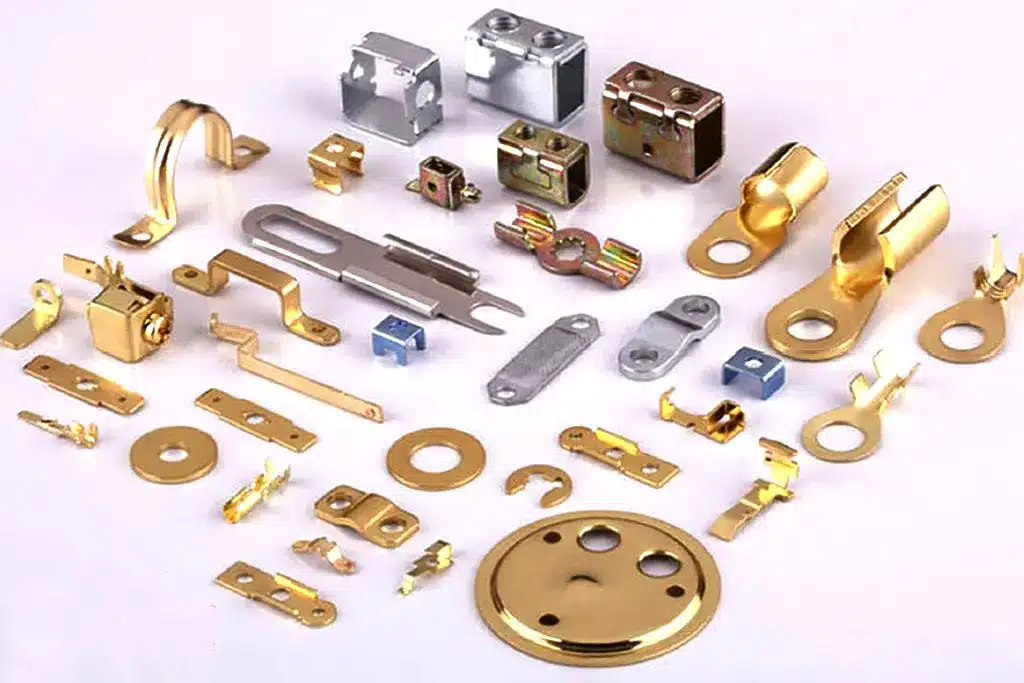

Application
