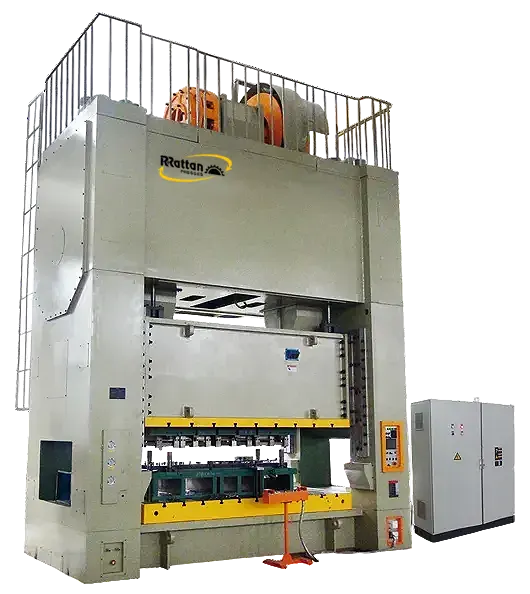

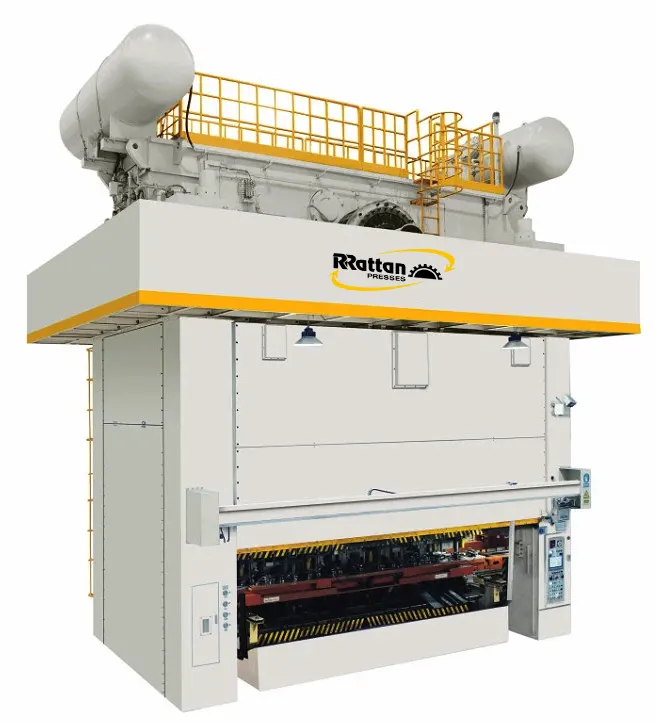

RS2-ECCENTRIC GEAR PRESS

Base column crossbeam and slide all use steel structure, Tighten together with tension bolts.
The transmission adopts three-stage transmission, one stage belt drive, two-stage gear transmission, High speed stage double helical gear.
The connecting rod is connected with the slide block by the guide pillar guide sleeve structure, Eight extra long guide rail.

NAME	UNITS	RS2-400	RS2-500	RS2-630	RS2-800	RS2-1000	RS2-1250	RS2-1600
Nominal pressure	KN	4000	5000	6300	8000	10000	1250	16000
Nominal Pressure stroke	mm	13	13	13	13	13	13	13
Slide stroke	mm	400	500	500	500	600	600	600
No. of stroke per minute	spm	Dec-18	Oct-16	Oct-16	Oct-16	Oct-16	Oct-16	Oct-16
Max die height	mm	800	Mar-02	Sep-02	Sep-02	Jan-03	Jan-03	Jan-03
Die height adjustment	mm	350	350	500	500	500	600	600
Distance between slide rails	mm	2870	3160	3670	4060	4070	4080	4580
Bloster dimension	mm	1600x2800x180	1600x3000x220	1600x3600x220	1800x4000x250	1800x4000x280	1800x4500x300	1800x4500x340
Slide dimension	mm	1600×2800	1600×3000	1600×3600	1800×4000	1800×4000	1800×4500	1800×4500
Air cushion	KN-mm	600-200	800-220	1000-240	1250-250	1250-250	1500-250	1500-250
Knocking out of Slide	mm	150	150	150	150	150	150	150
Main motor power	KW	75	75	90	132	132	160	220
Overall dimension	mm 4	4350x5180x6980	4900x5770x7900	4080x5420x7980	6870x5530x8860	7290x5600x9600	7500x6000x10600	38450x6320x11000

The clutch brake adopts a low inertia pneumatic clutch brake, which is controlled by a double safety valve.
The hydraulic pressure overload protection device is adopted for the slide block.
The height of the mould is adjusted by the digital display.
The method of thin oil circulating lubrication and concentrated oil clearance lubrication. With high and low level detection, high pressure detection, timing, fixed-point, quantitative lubrication
Hydraulic, pneumatic, electrical control components using high-quality brand-name products. Electrical use PLC dual loop.control
With oil pressure, oil level, fault detection, a variety of action chain Finite element analysis of key components,
Optional before or after the moving side of the bloster, air cushion, special vibration isolator, quick die changing device, photoelectric protection device, rigid material and so on
