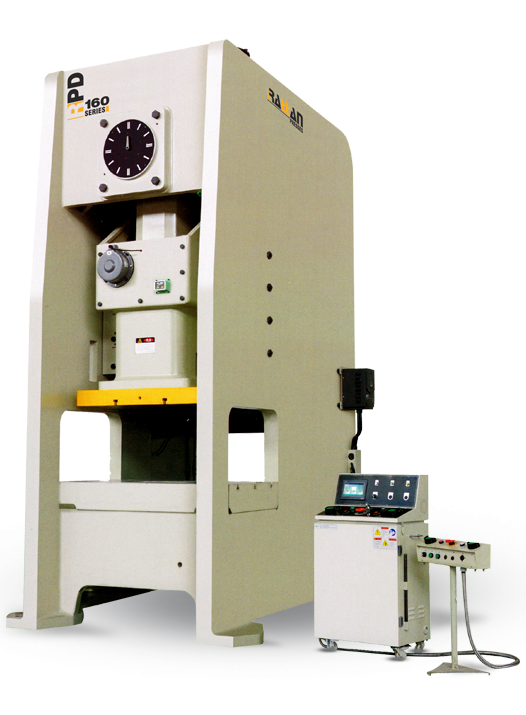

RPD-Single Point Heavy Duty Pneumatic Clutch Press

Technical Specification For "RPD-Single Point Heavy Duty Pneumatic Clutch Press"

Name	Unit	RPD-80	RPD-110	RPD-160	RPD-200	RPD-260
Model	Ton	V H	V H	V H	V H	V H
Capacity	mm	80	110	160	200	260
Rated tonnage point	mm	4 2	6 3	6 3	6 3	7 3.5
Stoke	mm	150 70	180 80	200 90	200 100	250 150
Die Height	s.p.m	340 380	360 410	460 510	460 510	500 550
Stoke per minute	mm	35-80 80-120	30-60 60-90	20-50 40-70	20-50 50-70	20-50 50-70
Slide Adjustment	mm	80	80	100	110	120
Slide Area	mm	560x420x70	650x470x80	700x550x90	850x630x90	950x700x100
Bolster Area	kw.p	760x550x90	900x600x110	980x880x140	1140x820x160	1500x840x180
Main Motor	HP	7.5	11	15	18	22
Slide Adjust device	kg/cm2			ELECTRICAL DRIVING
Air Pressure	mm	6	6	6	6	6
Presses Dimension	ton	1300x1890x3000	140x1985x3200	1600x2200x3500	1750x2500x3900	2780x1850x4470
Presses Weight		7.8	10.5	17.8	25.3	32
Presses Precision	ton			GB(JIS) 1CLASS
Die Cushion Capacity	mm	3.6	6.3	10	14	14
Stroke	mm2	70	80	80	100	100
Die Cushion Effective Area		450×310	500×350	650×420	710×480	810×480

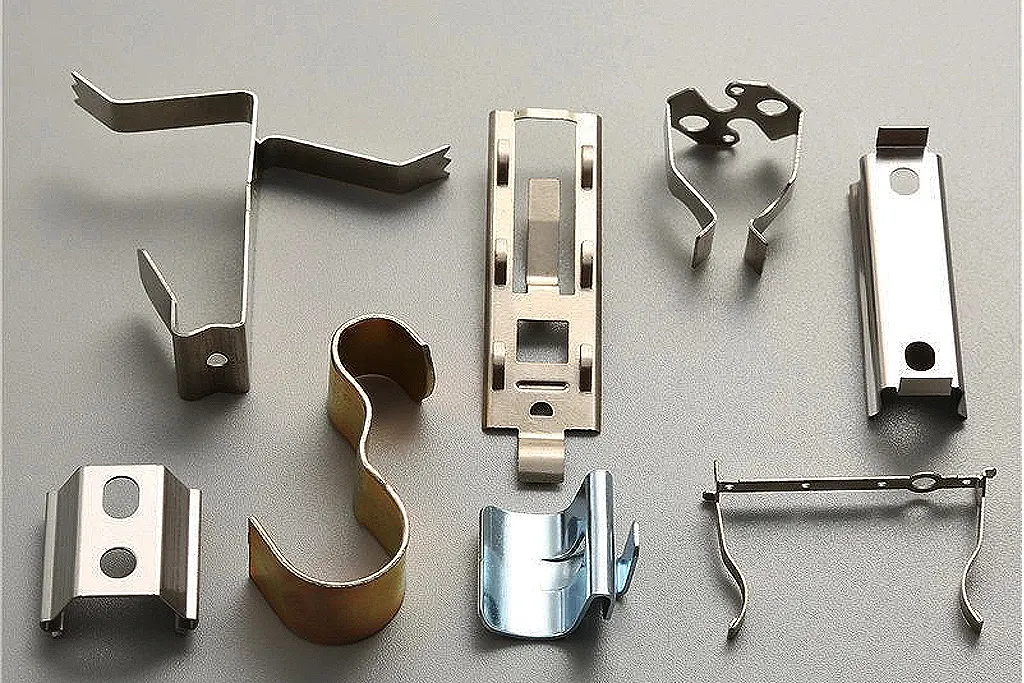

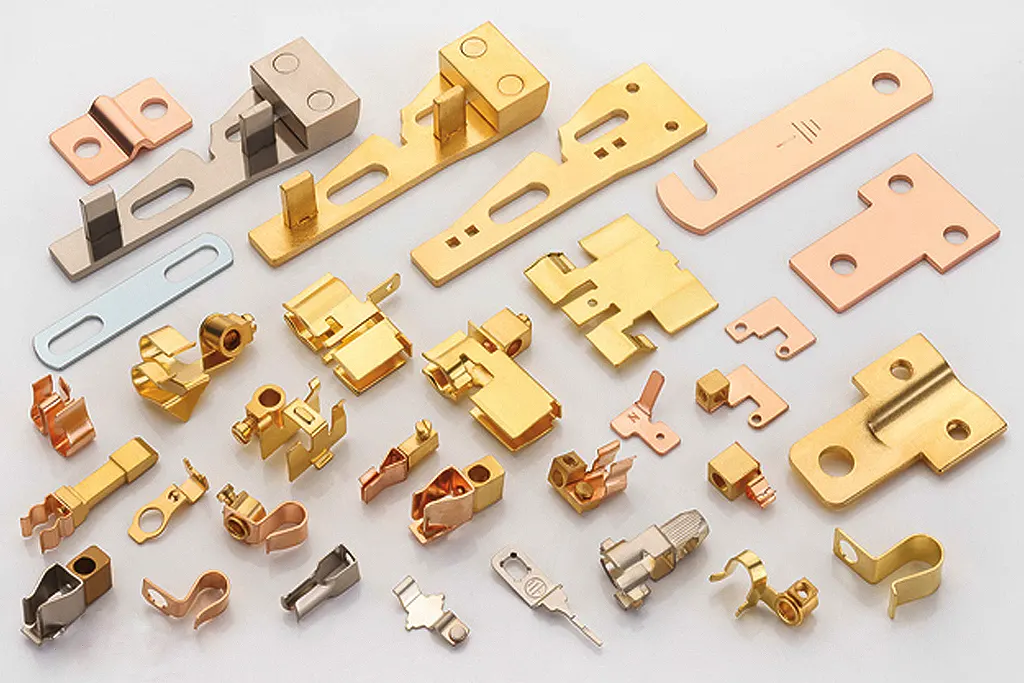

Applications
