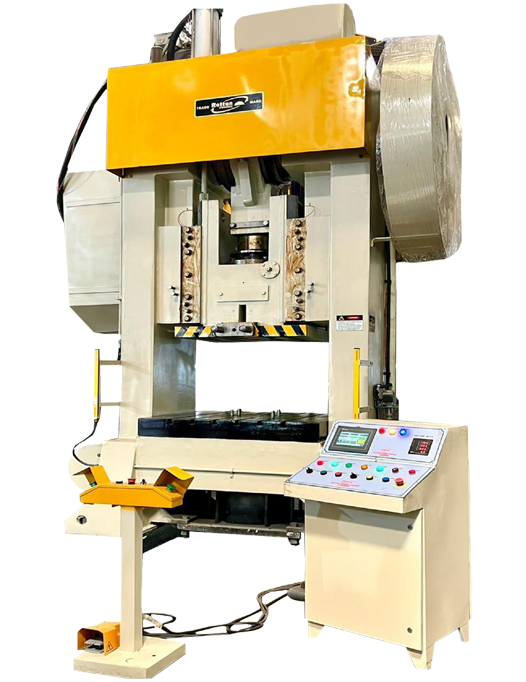

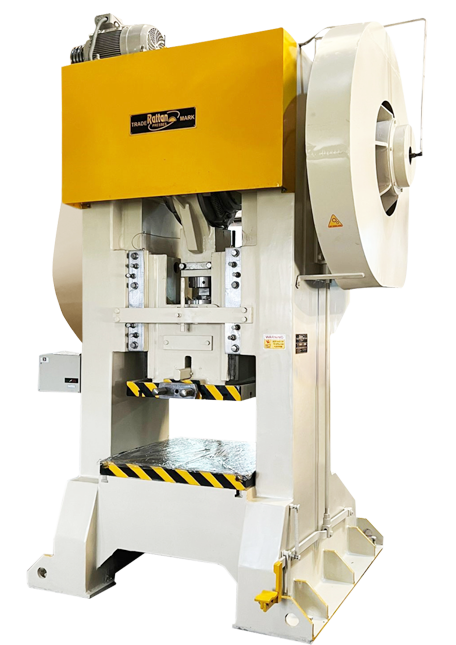

H-Frame Mechanical And Pneumatic Press (L/R Shaft)

Capacity in Tons	600	500	400	315	260	200	160	110	80	60
Dia of Crank Shaft (mm) on Load Point	315	295	260	235	210	185	160	135	120	100
Stroke Adjustable	300	250	250	200	200	200	1560	150	125	100
Punch Bor in Ram	75	75	70	250	70	60	60	50	38	38
Width of Bed	1500	1200	1200	1100	1000	900	800	700	600	500
Length of Bed	1500	1500	1200	1100	1000	900	800	700	600	500
Gear dia	1830	1730	1650	1500	1270	1145	1015	865	790	660
Fly Wheel	1520	1520	1520	1450	1400	1320	1210	1070	910	830
Dey light(Bed of Dam)	1200	1050	900	800	700	600	550	500	450	400
Stroke Per Min	30	30	35	35	35	40	40	40	50	50
H.P Required (1440)	50	50	40	30	25	20	15	10	7.5	5
Section of belt	C	C	C	C	C	C	C	B	B	B
Bed Bore Round	300	300	280	300	250	250	230	220	190	160
Height of M/C	4750	4600	4400	4200	4050	3850	3650	3400	3000	2650
Approx Floor Area	3500x 2500	3050x 2000	2500x 1700	1700x 1200	1520x 1090	1450x 1080	1380x 1070	1270x 1020	1040x 825	900x 795
Weight in Kgs (approx) of Mechanical	35000	30000	20000	17000	14000	9500	6500	4800	3500	2300
