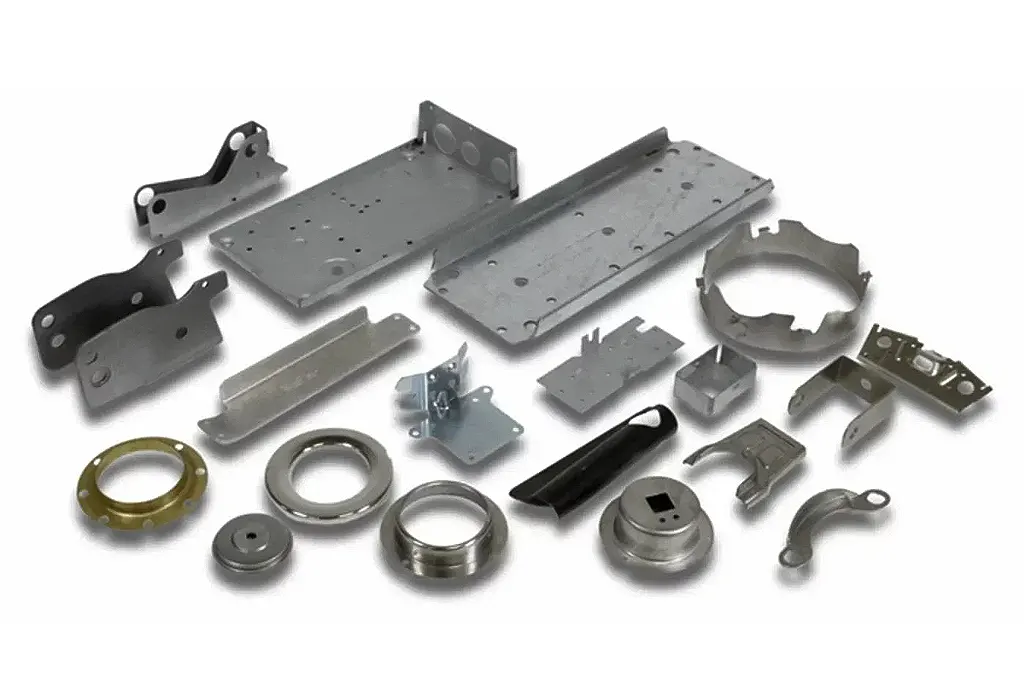

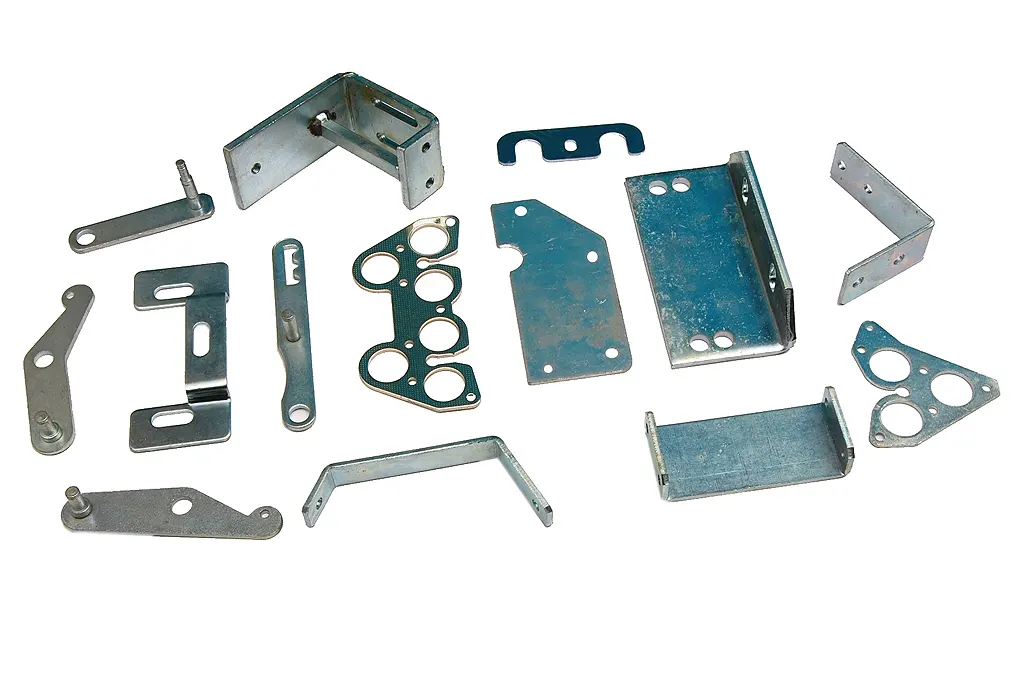

High Precision Compact Cross Shaft Power Press
High Precision Compact Cross Shaft Power Press, Rattan Power Presses.
High Precision Compact Cross Shaft Power Press
High Precision Compact Cross Shaft Power Press
Standard Accessories

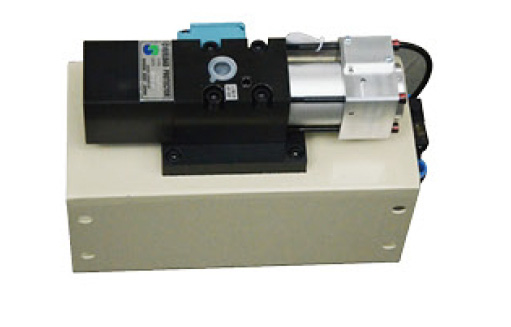

- Hydraulic over-load protector
- Slide adjust
- Slide adjust device

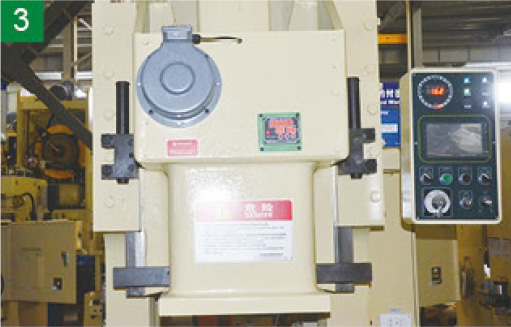

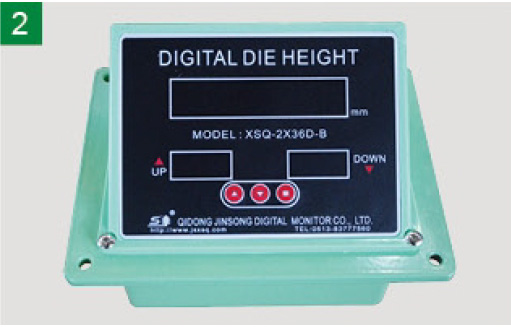

- Die Height Indicator
- Balance device

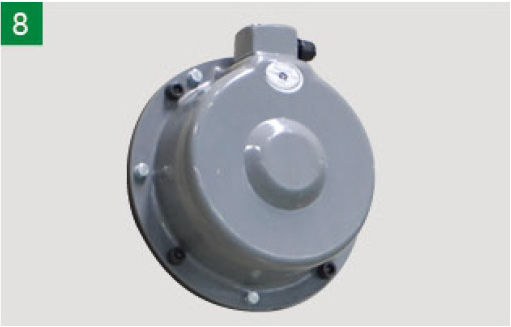

- Rotary cam switch
- Crank angle Indicator
- Electrical Stroke Counter
- Air Source Receptacle
- Against over-run safety device
- Air ejector
- Maintenance tool box
- Operation manual
Optional Accessories
- High performance wet clutch & brake
- Die cushion device
- Pneumatic die cushion device
- Foot switch
- Quick die changer device (die lifter, clamp and die arm)
- Slide knock-out device
- Power supply
- Anti-vibvration press mount
- Photo-electronic safety device
- Feeder
- Uncoiler
- Leveler
Technical Specifications
|
TECHNICAL DATA
|
UNIT
|
RP30
|
RP40
|
RP50
|
RP75
|
RP100
|
RP125
|
RP160
|
RP200
|
RP250
|
|
Rated Tonnage Point
|
Tons
|
3.2
|
3.2
|
3.2
|
4
|
4
|
6
|
6
|
6
|
6
|
|
Stroke Lenght
|
mm
|
70
|
70
|
80
|
120
|
150
|
180
|
200
|
200
|
250
|
|
Number of Stroke
|
min.
|
75
|
75
|
65
|
60
|
55
|
45
|
40
|
35
|
30
|
|
Die Height
|
mm
|
250
|
275
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Slide Adjustment
|
mm
|
50
|
55
|
60
|
70
|
80
|
80
|
100
|
110
|
120
|
|
Slide Are (L-RxF-B)
|
mm
|
300×220
|
360×250
|
400×300
|
500×360
|
560×420
|
650×470
|
800×600
|
900×700
|
1200×800
|
|
Bolster Are (L-RxF-B)
|
mm
|
680×300
|
800×400
|
850×440
|
900×500
|
1000×550
|
1200×600
|
1250×800
|
1400×850
|
1500×1000
|
|
Bolster Thickness
|
mm
|
70
|
70
|
70
|
90
|
100
|
110
|
125
|
140
|
150
|
|
Main Motor
|
H.P
|
3
|
3
|
5
|
7.5
|
10
|
15
|
20
|
25
|
30
|
|
Slide Adjustment Motor
|
Kw
|
MANUAL TYPE
|
1.1
|
1.1
|
1.5
|
1.5
|
2.2
|
2.2
|
||
|
Height from floor to bed
|
mm
|
—
|
800
|
800
|
800
|
850
|
850
|
900
|
900
|
900
|
|
Required Air Pressure
|
kg
|
5.5
|
5.5
|
5.5
|
5.5
|
5.5
|
5.5
|
5.5
|
5.5
|
5.5
|
|
Shank Hole
|
mm
|
38.1
|
38.1
|
38.1
|
50
|
50
|
50
|
65
|
65
|
65
|
|
Die Cushion
|
Tons
|
—
|
—
|
—
|
4
|
6
|
8
|
12
|
14
|
16
|
|
Overall Machine Size (L-RxF-B)
|
mm
|
840×1100
x2135 |
900×1200
x2345 |
950×1400
x2425 |
1000×1420
x2780 |
1170×1595
x2980 |
1290×1720
x3195 |
1390×2140
x3670 |
1500×2300
x3800 |
1700×2600
x4000 |
Characteristic
- With high rigidity design in machine frame, the machine body is welded of quality steel and treated by tension elemination, improve stability and reliability of precision of the machine.

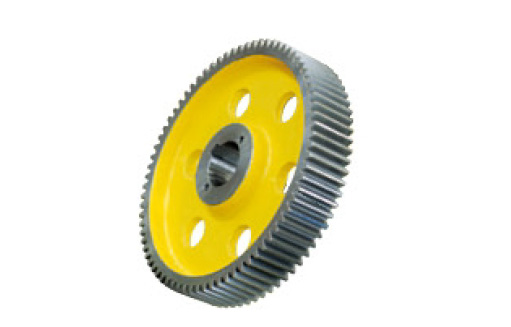

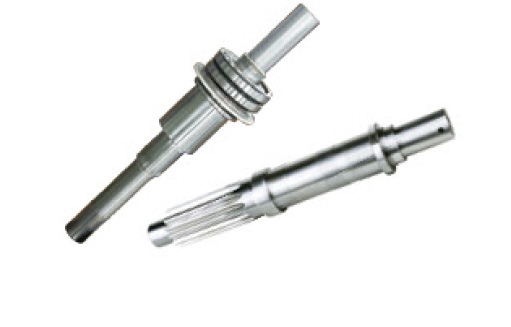

- Keep the transmission center and machine center in uniformity guarantee the precision of pressing.
- In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical two boards with balancer.
- The precision of mold adjusting up to mm, safety, reliable and convenient.

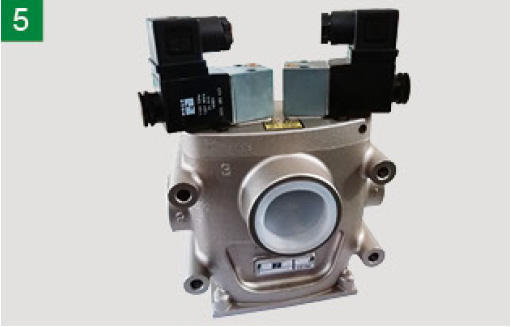

- Used reliable high sensitive clutch/break and international up-to-date twin electromagnetic valve, overloading projector can guarantee the precision of slider running and stop and sage production of the machine.
- Reasonable structural design, is benefit for automation production and reduce cost, Improve efficiency.
