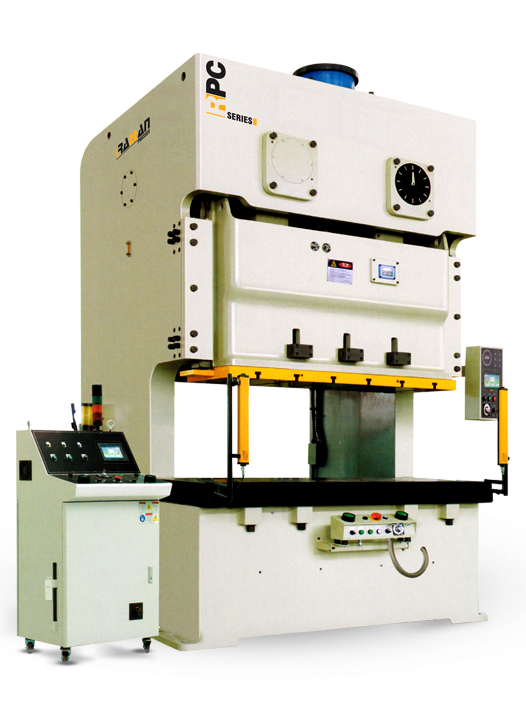

Double Crank Precision Steel Framing Press
Double Crank Precision Steel Framing Press, Power Presses in India.
TechnicalSpecifications
|
Neme
|
Unit
|
RPC-110
|
RPC-160
|
RPC-200
|
RPC-250
|
| Model |
V
|
V
|
V
|
V
|
|
| Capacity |
Ton
|
110
|
160
|
200
|
260
|
| Rated tonnage point |
mm
|
5
|
6
|
6
|
7
|
| Stoke |
mm
|
180
|
20
|
250
|
280
|
| Stable Speed |
s.p.m
|
35-65
|
20-50
|
25-45
|
20-35
|
| Die Height |
mm
|
400
|
400
|
500
|
550
|
| Slide Adjustment |
mm
|
100
|
100
|
120
|
120
|
| Bolster Area |
mm
|
180x650x130
|
2000x760x150
|
2400x840x170
|
2700x900x170
|
| Slide Area |
mm
|
1400x500x70
|
1600x550x70
|
1850x650x95
|
2100x700x95
|
| Main Motor |
kw
|
11×4
|
15×4
|
18.5×4
|
22×4
|
| Presses Weight |
Ton
|
14.2
|
20
|
27.5
|
45.5
|
| Air Pressure |
kg/cm2
|
6
|
6
|
6
|
6
|
| Presses Pricision |
JIS (CNS) 1 CLASS
|
||||
| Die Cushion Capacity |
TWO PLATE & TWO CULINDERS
|
||||
| Die Cushion Capacity |
Ton
|
3.6×2
|
6.3×2
|
10×2
|
14×2
|
| Air Pressure |
kg/cm2
|
6
|
6
|
6
|
6
|
| Stroke |
mm
|
80
|
80
|
80
|
100
|
| Die Cushion Effective Area |
mm2
|
350x235x2
|
410x260x2
|
540x350x2
|
640x470x2
|
