H -Type Single Crank Precision Press
Technical Specification For "H-Type Single Crank Precision Press"
Name |
Unit |
RPF-110 |
RPF-150 |
RPF-200 |
RPF-260 |
RPF-300 |
RPF-400 |
RPF-500 |
RPF-600 |
| Model | V |
V |
V |
V |
V |
V |
V |
V |
|
| Capacity | Ton |
110 |
150 |
200 |
260 |
300 |
400 |
500 |
600 |
| Rated tonnage point | mm |
6 |
6 |
6 |
7 |
7 |
9 |
10 |
13 |
| Stoke | mm |
180 |
200 |
200 |
250 |
300 |
300 |
400 |
400 |
| Speed Chainging | s.p.m |
30~60 |
20~50 |
20~50 |
20~40 |
20~40 |
20~30 |
20~30 |
15~20 |
| Srable Speed | s.p.m |
50 |
35 |
35 |
30 |
30 |
20 |
20 |
20 |
| Die Height | mm |
360
|
460
|
460
|
500 |
600
|
750 |
750 |
750 |
| Slide Sdjustment | mm |
80 |
100 |
110 |
120 |
120 |
150 |
150 |
200 |
| Slide Area | mm |
1000×550 |
1100×600 |
1200×650 |
1300×700 |
1400×800 |
1500×850 |
1400×800 |
1500×1200 |
| Bolster Area | mm |
1100x600x110 |
1200x800x140 |
1300x820x160 |
1400x840x180 |
1500x1000x200 |
1500x1200x200 |
1600x1200x200 |
1600x1200x250 |
| Side Opening | mm |
700×500 |
850×600 |
880×650 |
900×700 |
1000×750 |
1000×750 |
1000×800 |
1000×900 |
| Main Motor | Kw x p |
11×4 |
15×4 |
18×4 |
22×4 |
30×4 |
40×4 |
55×4 |
75×4 |
| Slide Adjust device | Kw x p |
0.4×4 |
0.75×4 |
0.75×4 |
1.5×4 |
1.5×4 |
2.2×4 |
3×4 |
3×4 |
| Air Pressure | kg/cm2 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
| Presses Precision | GB/T2328002009 |
||||||||

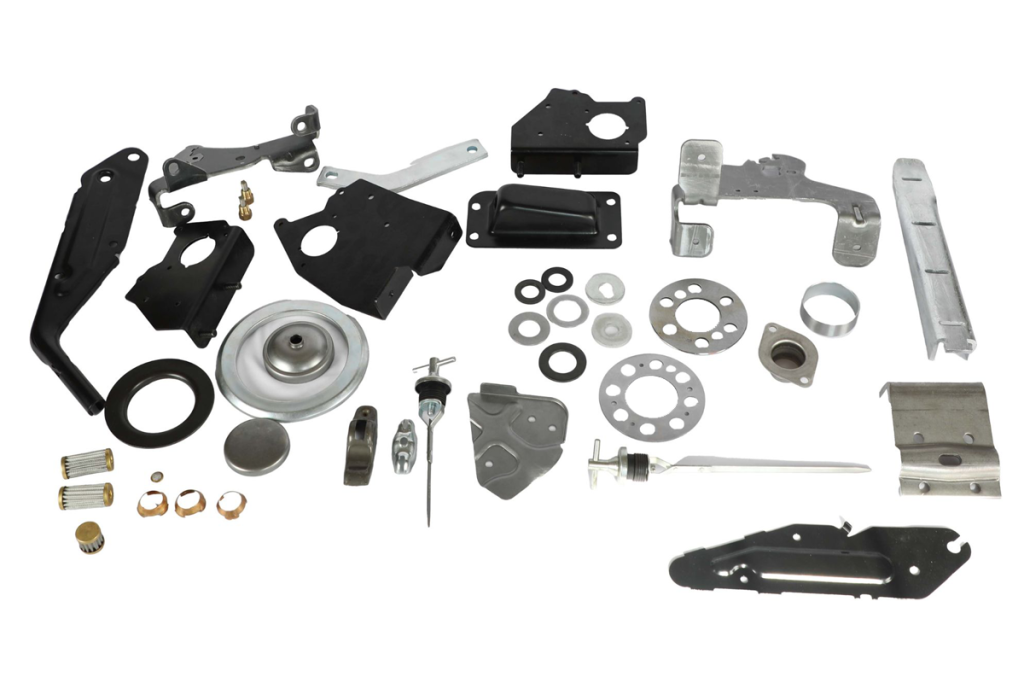

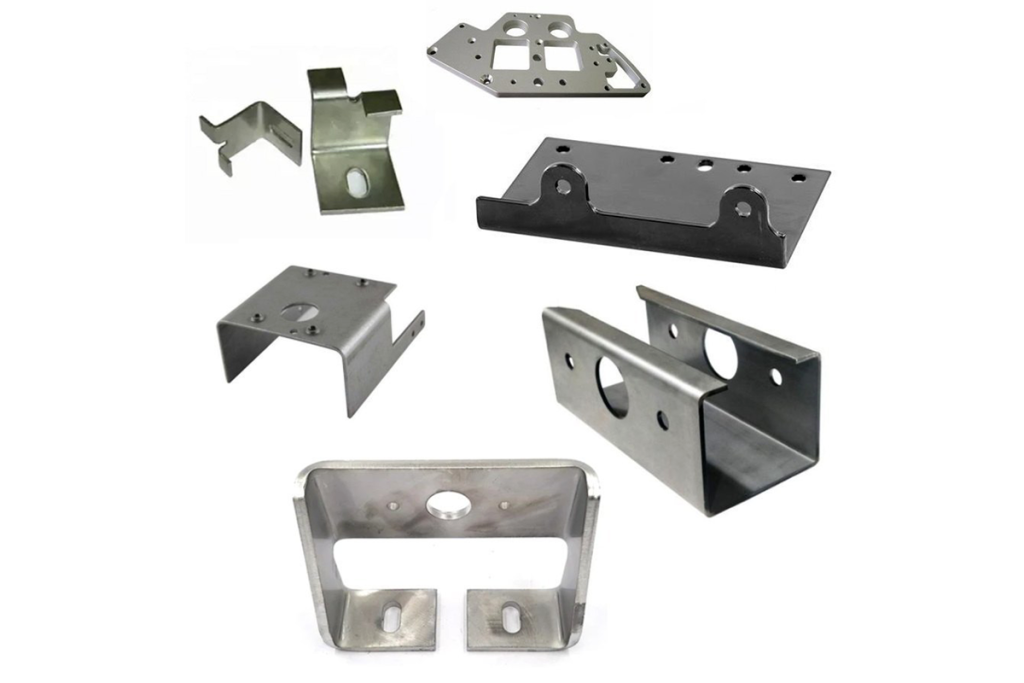

Applications
